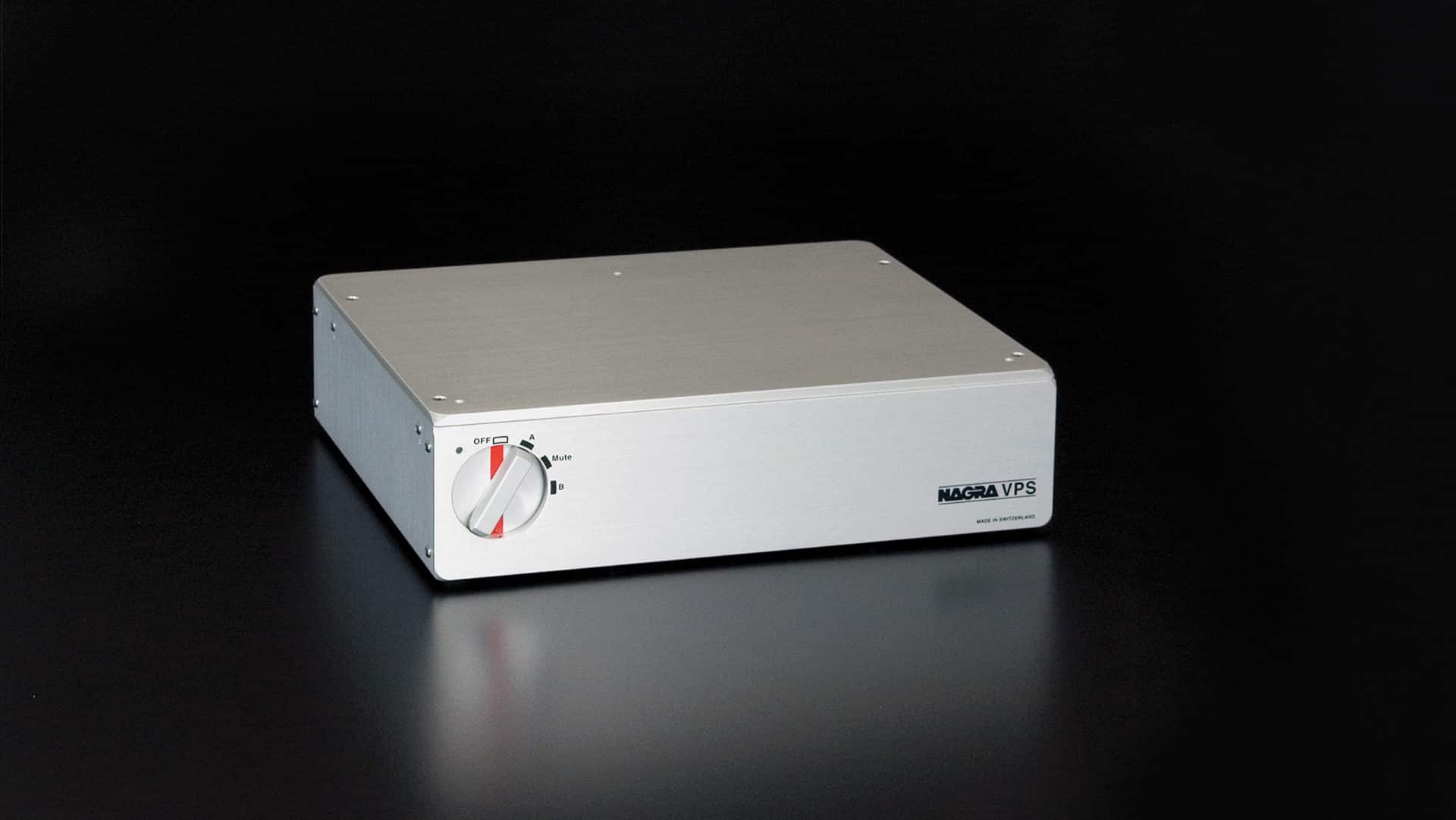

Nagra VPS

Nagra VPS Valve Phono Stage Preamplifier tube RCA XLR MC MM

Manufactured from 2007 to 2020



Valve Phono Amplifier
The VPS dual input valve phono preamplifier is based on the design principles of the world acclaimed PL-P phono stage.

The listener benefits from the true sound of their vinyl record library using the outstanding performance of Nagra tube electronics.

Nagra VPS Valve Phono Stage Preamplifier tube RCA XLR ACPS power supply MC MM

Chassis design

Built in a traditional Nagra compact brushed aluminium case with identical dimensions to the preamplifiers and CD players, this dual input phono preamplifier is to be used in conjunction with a line preamplifier such as the Nagra JAZZ.  The metal chassis of the VPS offers excellent protection from spurious parasitic interference which can be very influential when working with phono level audio signals.

Nagra VPS Valve Phono Stage Preamplifier tube RCA XLR open inside

Circuit design

The internal circuits of the VPS are gold plated and benefit from in-house wound input transformers to guarantee the highest possible fidelity when operating with a moving coil cartridge. All the connections to the VPS are available on the rear of the unit and use the WBT gold-plated RCA connectors. The VPS is equipped with a single MM / MC input stage as standard, but can be equipped with an optional second MC /  MM or MM only input circuit to accommodate a second tone-arm or turntable.

Even though the circuit is mounted on insulation suspension mountings, ideally, the VPS should be installed on the VFS (Vibration Free Support) shock absorbing plates, to totally eliminate any mechanical vibration from being transmitted to the highly sensitive input stage.

Nagra VPS Valve Phono Stage Preamplifier tube RCA XLR back

Adaptive loading circuits

Taken from the concept of the PL-P the VPS uses adaptive loading circuits built onto small additional boards that can be inserted as required.  Six of these circuits are delivered with the unit, allowing the input impedance of the VPS to be adapted to match virtually any phono cartridge. Three additional custom made modules are available from Nagra, free of charge upon request.

Nagra VPS Valve Phono Stage Preamplifier tube RCA XLR inside

Powering

The VPS can be powered by its own independent 12V supply unit. To take the VPS a step further, the MPS multiple power unit can be used. In this case, adding the optional Li-ion battery pack, to guarantee complete isolation from the Mains, should be considered.

Technical specification

ELECTRONICS

Frequency response: 20 Hz to 30 kHz (+1/0 dB)
Harmonic distortion: > 0.15% (Hi output position)
Signal-to-noise ratio: > 77 dB (ASA A)
Channel separation: Typically 60 dB
Input circuit loading: Without load module installed: 47 kOhms (can be deactivated)
Loading modules: 6 modules supplied, 3 custom-made upon request
Input circuit A: Accepts MM and MC inputs
Input circuit B (optional): As input A or MM only (without transformers)
Transformer gain: (MC input) 11 dB
Tube stage gain: 34 dB (ECC 81 and ECC83 tubes)
Transistor stage gain: 15 dB (can be deactivated)
Correction norms: RIAA 1953 (with jumpers in place) or IEC 1976 (without jumpers)
Power consumption: 12,6 W (in 1.6W stand-by mode)
Power supply External: 94-132 V or 188-264V / 44 to 66 Hz



GENERAL

Input connectors: Gold-plated RCA-Cinch WBT
Output connectors: Gold-plated RCA WBT or asymmetrical XLR Neutrik connectors
Weight: 3.3 kg (7.3 lbs)
Dimension: (W x D x H) 27.7 x 254 x 76 mm (12.2 x 10 x 3 inches)
DOWNLOADS

User Manual: EnglishFrancais / Deutsch



Brochures: English / Français

Accessories

VFS: Vibration Free Support
CLASSIC PSU or MPS: Multiple Power Supply
ACPS III: Single power supply
