Nagra JAZZ

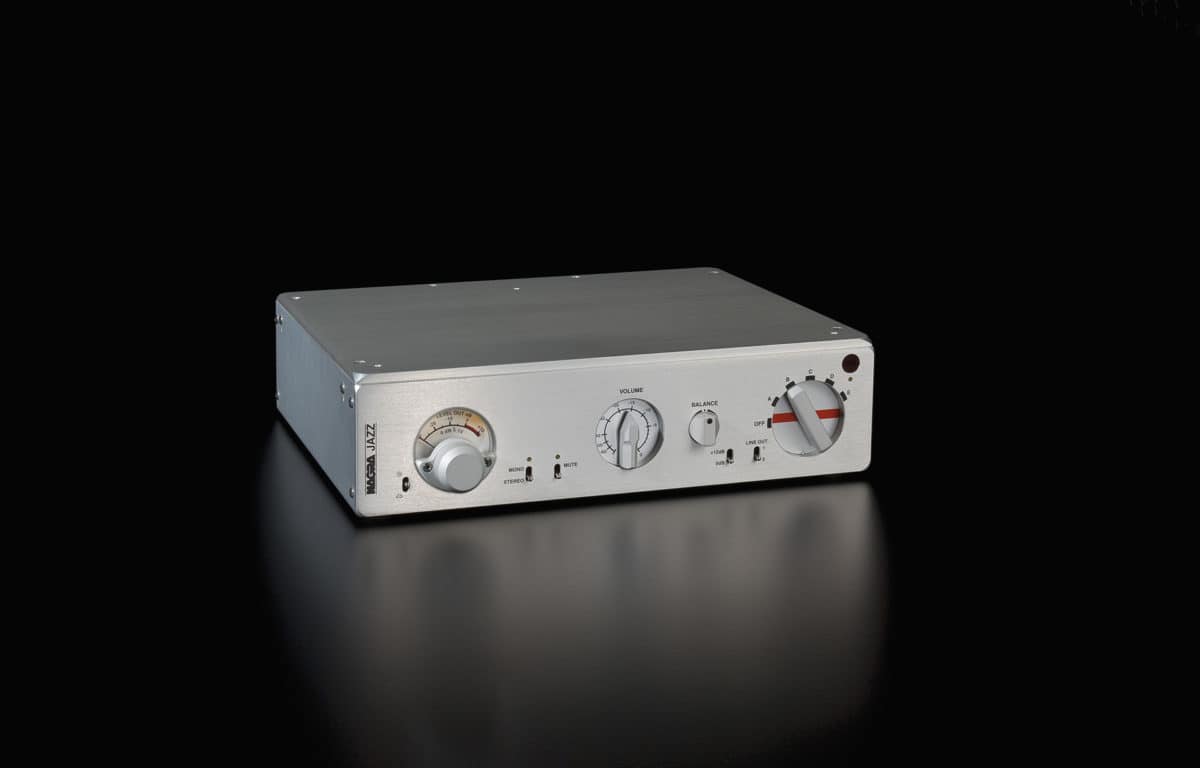

Nagra Jazz Preamplifier tube valve front modulometer peclette

Manufactured from 2012 to 2017

High-end vacuum tube preamplifier

The JAZZ is a Pure Class A vacuum tube preamplifier, with a totally redesigned circuit concept when compared to the concepts of the world-renowned PL-P and PL-L. It pushes the barriers of deep, natural, highly defined sound to the limits. It boasts a fine tune balance control allowing minute differences in the stereo image to be delicately adjusted. Built-in a jewel-like machined anodized aluminum case with a solid aluminum front panel.

Nagra Jazz Preamplifier tube valve Melody mosfet transistor

Quality in every detail

The JAZZ uses three high-grade vacuum tubes and Nagra-made transformers to provide a irreproachable sonic clarity. Each vacuum tube used in the JAZZ has been burned-in for 48 hours and thoroughly tested to ensure the highest level of performance. The JAZZ has a no-compromise design in a pure audiophile approach for both quality and simplicity in the signal’s path.

The power supply is always a key issue in the quality of any pre-amplifier. The external power supply ACPS II is designed to deliver quiet and stable performance essential for the highest quality audio system. It is completely isolated from AC line noise and powers the JAZZ through an ultra high quality power cable and LEMO connector.

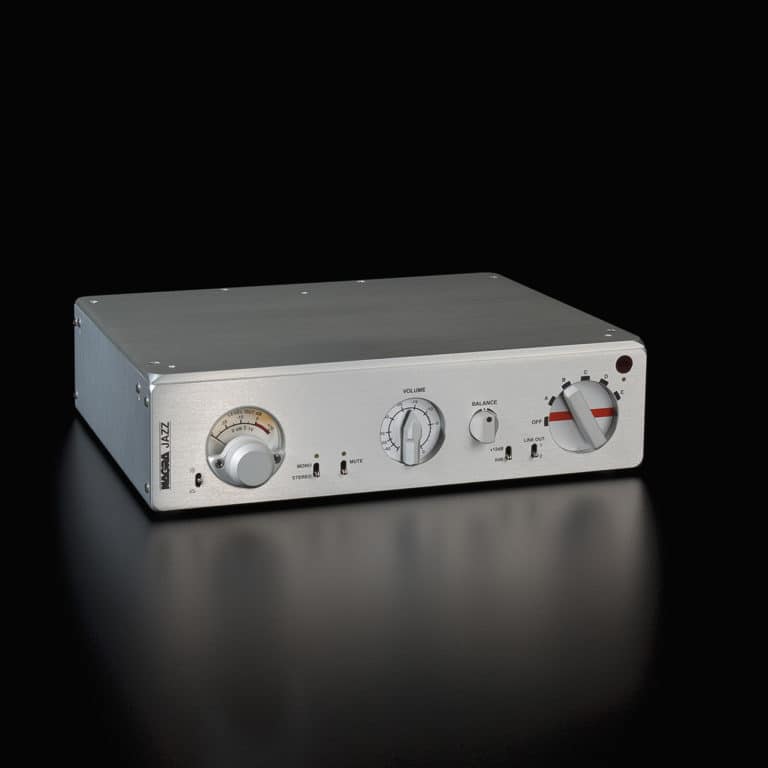

Nagra Jazz Preamplifier tube valve inside ECC83 ECC81 12AT7

Inputs

The JAZZ provides five inputs that include one XLR unbalanced (asymmetrical) and four RCA (CINCH) single-ended connections. It offers input source selection, balance and volume controls, as well as a precision modulometer for system level matching. The audio output is automatically muted when switching between sources.

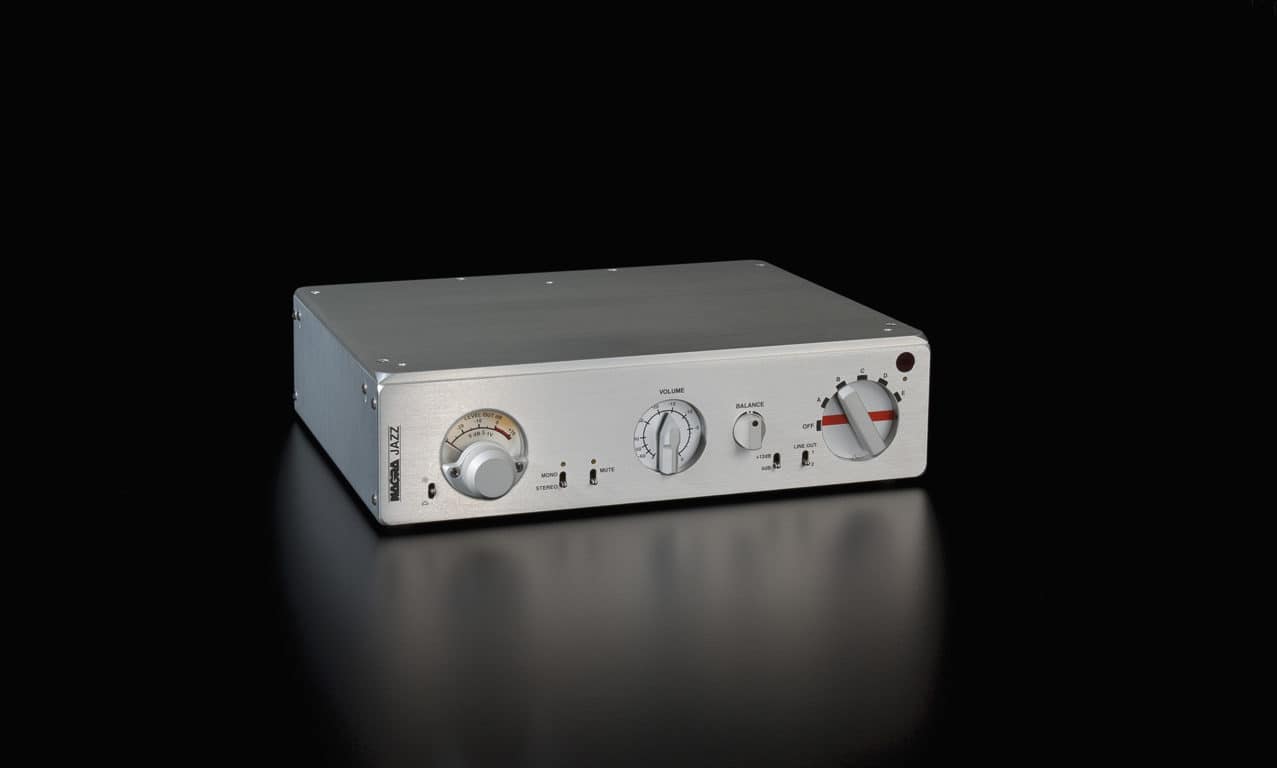

Nagra Jazz Preamplifier tube valve front modulometer peclette switch selector

Outputs

The outputs of the JAZZ are directly coupled to the output vacuum tubes, specifically to ensure the highest audio performance. The level on the output connectors can be set between 0 or +12 dB using the selector on the front face of the unit to match the specific level of the amplifier.

A switch is provided to select either: Output 1, two unbalanced sets of RCA stereo connectors to allow bi-amp setups or to connect to both amplifiers and a recorder. Output 2, balanced (symmetrical) XLR connectors; using custom-designed Nagra-made transformers for floating outputs giving optimum performance.

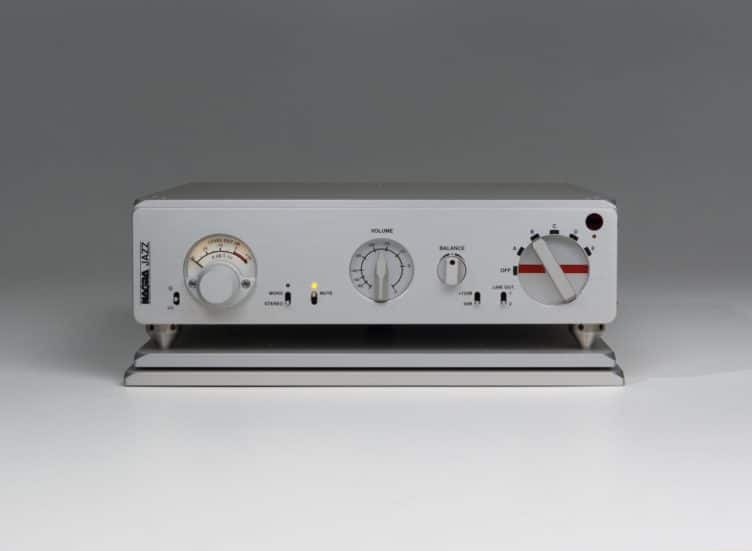

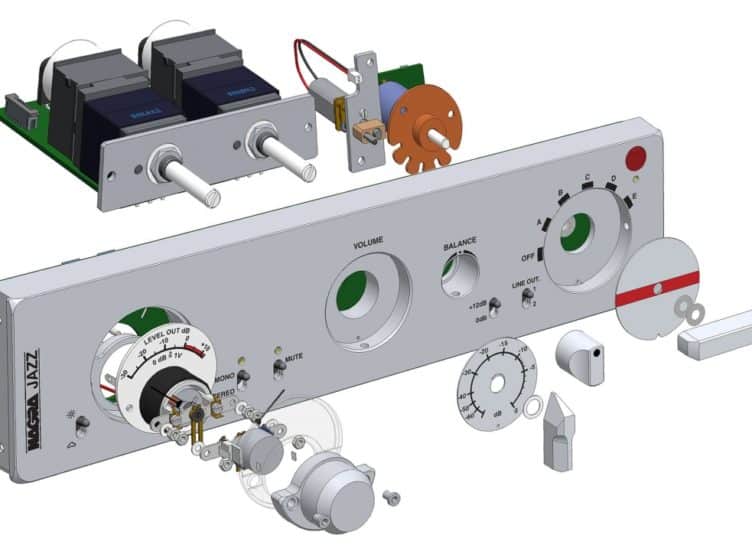

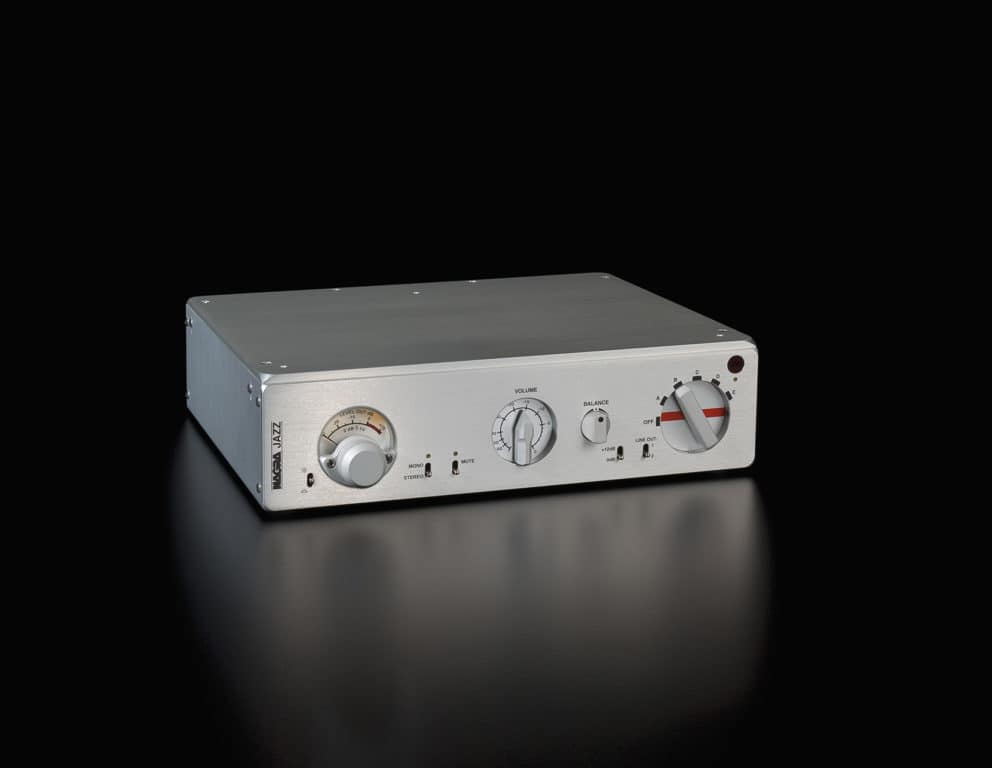

Nagra Jazz Preamplifier tube valve front face modulometer

Remote control

The JAZZ has a convenient remote control. The remote control will allow selection between the different input sources and adjustment of balance and output level. Direct motors are implemented for driving volume and balance control potentiometers. This means, the remote control does not degrade the sound quality; the audio signal path remains unchanged. This is the most elegant way to control the volume and balance in an analog product.

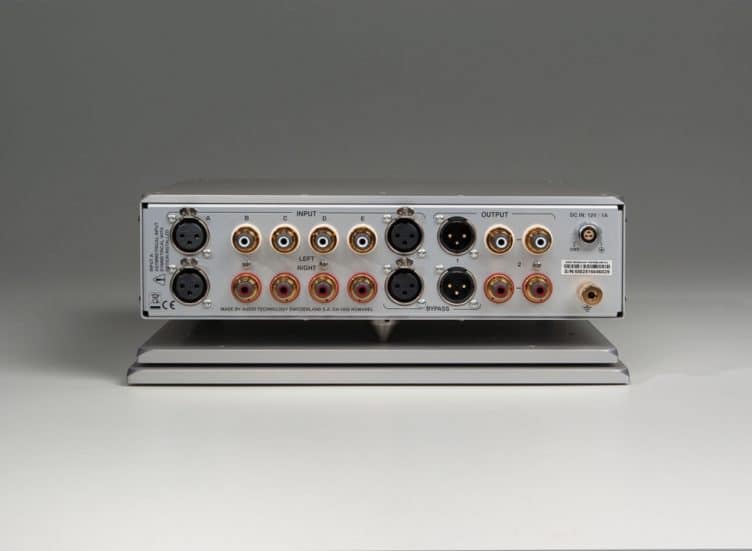

Nagra Jazz Preamplifier tube valve back xlr rca

Tradition – Level matching through the Nagra modulometer

A highly precise, Nagra-made modulometer, similar to that of the legendary NAGRA IV-S, provides a multitude of functions through two coaxial, internal pointers representing the left and right channels. The Nagra modulometer is a true measurement device that allows precision over a large scale. The modulometer can be used to adjust the volume and balance potentiometers for:

  • Fine tuning the balance between left and right channels ;
  • Compensating the level differences between various recordings ;
  • Controlling the output level to the amplifier.

Technical specification

ELECTRONICS

Input impedance: > 75 K Ohms
Output impedance: 50 Ohms
Frequency response: 10 Hz – 50 kHz (+0 /-0.5 dB)
Signal to noise ratio: Typically 105 dB (ASA A) Ref 1 V
Dynamic range: > 112 dB Gain at +12 dB
Minimum input level to reach 0: dB (meter) 0.25 V rms Gain at + 12 dB
Maximum input level to reach 0: dB (meter) > 25 V rms Gain at 0 dB
Total harmonic distortion (THD): <0.02 % @ 1 kHz, 1 V out, no load
Crosstalk: > 78 dB



TUBES

Vacuum tubes: 2x 12AX7 / ECC83 1x 12AT7 / ECC81 Selected by Nagra Laboratory



GENERAL

JAZZ consumption: 12 V 900 mA Standby <10 mW
Power supply: 115 V or 230 V AC input ACPS II power supply
Dimensions: 310 x 254 x 76 mm 12.2 x 10 x 3 inches
Weight: 3.3 Kg – 7.27 lbs JAZZ unit alone
