Nagra V - Nagra

Manufactured from 2002 to 2006

24 bit Linear Location Recorder

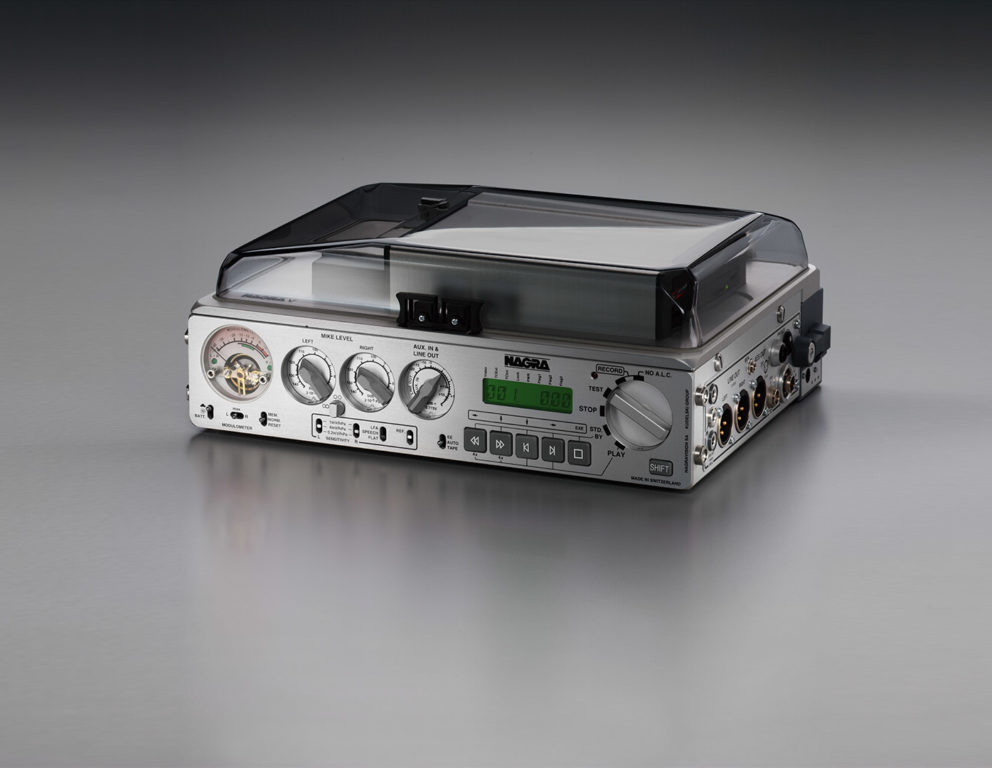

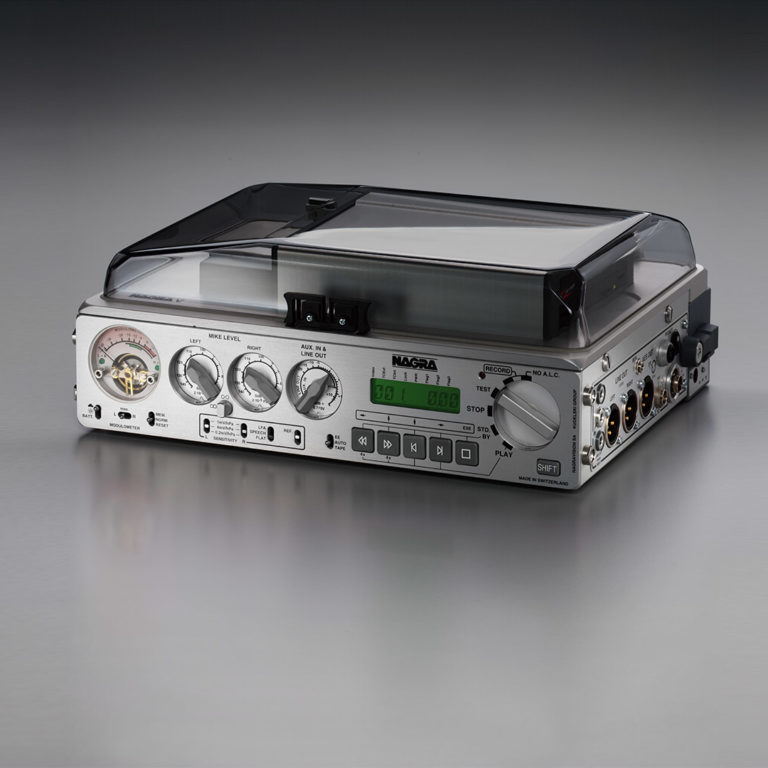

The Nagra V was originally designed as the successor to the renowned Nagra IVS-TC and a replacement for R-DAT. The Nagra V is a light, compact and reliable recorder manufactured to suit on-the-shoulder / on-location engineer needs. Its extremely high audio quality makes it excellent for all types of music recordings. It can be delivered in the “single” or “double” modulometer configuration and can be completed with a wide variety of accessories. Available with an optional INTERNAL hard disc, it can be delivered with either the removable hard disk OR removable compact flash media.

Key features

2 channels (24 bit, 96 kHz AD / DA)	Pre-recording buffer
Post-production compatible (BWF files)	LCD display
SMPTE Time Code	Self-contained
Affordable medium (2.5” Hard drive disk / Compact Flash)	Lightweight
Built-in matrix and MS decoder	Reliable

Record Medium

The Nagra V records to a removable 2.5″ hard disk OR compact Flash card allowing approximately 1 hour of 48 kHz 24-bit recording per GB of available disk / card space. The hard drive is mounted in a removable drawer and can simply be connected to a PC or a Mac using: USB2 / PCMCIA / Firewire adapters and can also can be plugged into a 3.5” IDE bay. The CF card slot replaces the removable bay on the top of the machine. Audio file transfer is made easy, fast and at an affordable price. Optionally the Nagra V can be equipped with an additional internal shock-mounted hard disk. With this option permanent automatic copying can be made for back-up purposes. Other options such as Audio limiters, cases, power supplies etc are also available.

Special Features

Optional Twin drive (Additional internal hard drive) Double modulometer M/S decoder Limiter Camera return input available on the headphone as well as the analogue outputs Optional limiter board for microphone inputs (Order # 70 31113 000) On the AES output, dithering from 24 to 16 bits for back-up on a DAT or a CD Pre-recording User programmable up to 20 sec Stereo monitoring on a ¼” jack plug

Technical specification

RECORDING

Data Storage medium:	Internal Hard disk and Removable hard disk / CF cards
Recording Method:	Linear PCM
File type:	Broadcast Wave File BWF (WAV)
A/D & D/A conversion:	24 Bit Sigma Delta
Sampling Rate:	44.1, 48 kHz, (88.2 and 96 kHz optionally)
Recording capacity:	1hr of 24 bit 48 kHz per GB of disk / memory
Pre-recording buffer:	User programmable up to 20 sec.
Level meter:	Digitally driven analogue modulometer with HOLD feature

INPUTS

Microphone inputs:	2 x XLR (Dynamic, “T” Powering and +48V Phantom) Expandable to 4 if required using external accessory.
Microphone input sensitivity:	2, 10 and 40 mV/Pa
Line inputs:	15 pin SUB “D” connector
Line input sensitivity:	1.5V to 4.4V for 0 dB recording
Digital input:	Using special cable on 15 pin SUB “D” connector
Input filters:	“Flat”, “LFA” and “SPEECH”
External reference:	15 pin SUB “D” connector or BNC. (Word clock, video etc)
Limiters (optional):	Selectable for each channel.

OUTPUTS

Analogue line output:	2 x XLR (4,4V max)
THD at 1 kHz:	0.1%
Dynamic range:	Typical 98dB
Frequency response:	30Hz to 20 kHz (+0 dB -1 dB) at 48 ks/sec
Headphones:	Stereo ¼” Jack
Mono output:	Banana connectors (600 W)
Digital output:	XLR AES-3 Pro
Time code IN/OUT:	5 pin LEMO
M/S Decoder:	Switchable
Dither:	Menu selectable 24/16bits on Inputs and/or Outputs

GENERAL

Dimensions:	290 x 220 x 115mm (11.4 x 8.6 x 4.5”)
Weight:	2.75 kg (6 lb) without battery box
Quality control:	Every machine is tested: 1 cycle –10°C to + 60°C for 12 hours
Power Consumption:	10W
Relative humidity:	From 10% to 99% (non condensing)

OPTIONS / ACCESSORIES

2031001150

NAGRA V

printed user manual English edition

INTERNAL OPTIONS

7031120000	NV-TC	Time code option for NAGRA V, delivered with: QCTCU TC cable.
7031130000	NV-LIM	Internal audio limiter circuit
7031145000	NV-96K	High Sampling frequency option for NAGRA V

HARD DISKS / DRAWER

2097230000	NV-DRAW	Removable drawer for miniature Hard Disk (Empty)
7031152000	HD-40G	Removable drawer including miniature Hard Disk Drive 40 GB
7031153000	HD-60G	Removable drawer including miniature Hard Disk Drive 60 GB
7031162000	IHD	Internal Hard drive option for NAGRA V (Incl. 60GB disk)

POWERING OPTIONS

7031110000	NV-LIB	Battery box with lithium Ion battery pack, with charger circuit and manual.
2098260000	NV-LISET	Replacement set of Lithium Ion battery pack 65W for NV-LIB
2031150000	NV-PSU	Mains power supply for NV-LIB
7019111000	NA-BB8B	Battery Box for 8 “D” cells
2097940000	NV-NTA	Ambient external NP-1 battery pack adaptor

CASE / HANDLE

2031155000	NV-CH	Metal Carrying handle for NAGRA-V / ARES-C
2099185000	NV-SCC	Soft carrying case for NAGRA V / ARES-C equipped with NV-LIB battery box

SOFTWARE / ADAPTERS / CABLES

7010540000	ND-PCA	Adaptor RS232/422 for serial PC connection for the NVCOM software
7031100000	NV-COM	PC Software for NAGRA V
2097935000	HD-PCM	PCMCIA / IDE adapter from HDD to PC
2097937000	HD-USB	USB2 / IDE adapter from HDD to PC
2097939000	HD-FW	FIREWIRE / IDE adapter from HDD to PC
2095970000	CXLR-FM	3-pin XLR Cable male-female 1.5 m (5 ft)
2095971000	CXLR-FF	3-pin XLR Cable female-female 1.5 m (5 ft)
2095972000	ECXLR-FM	3-pin XLR Cable male-female 10 m (33 ft)
7010901000	DCR	Microphone input cable DIN 3F-XLR M 1.5 m (5 ft)
7016908000	QCTC	Time code cable Lemo-Lemo
7031140000	NV-CDI	Digital input cable 15-pin mini “D” XLR 3-pin female 1.5m (5 ft)
2095974000	C-LIN-FF	Line input cable 15-pin mini “D” 2 XLR 3-pin female 1.5m (5 ft)
2095973000	C-LIN-MM	Line input cable 15-pin mini “D” 2 XLR 3-pin male 1.5m (5 ft)
