Nagra MEZZO - Nagra

Nagra MEZZO

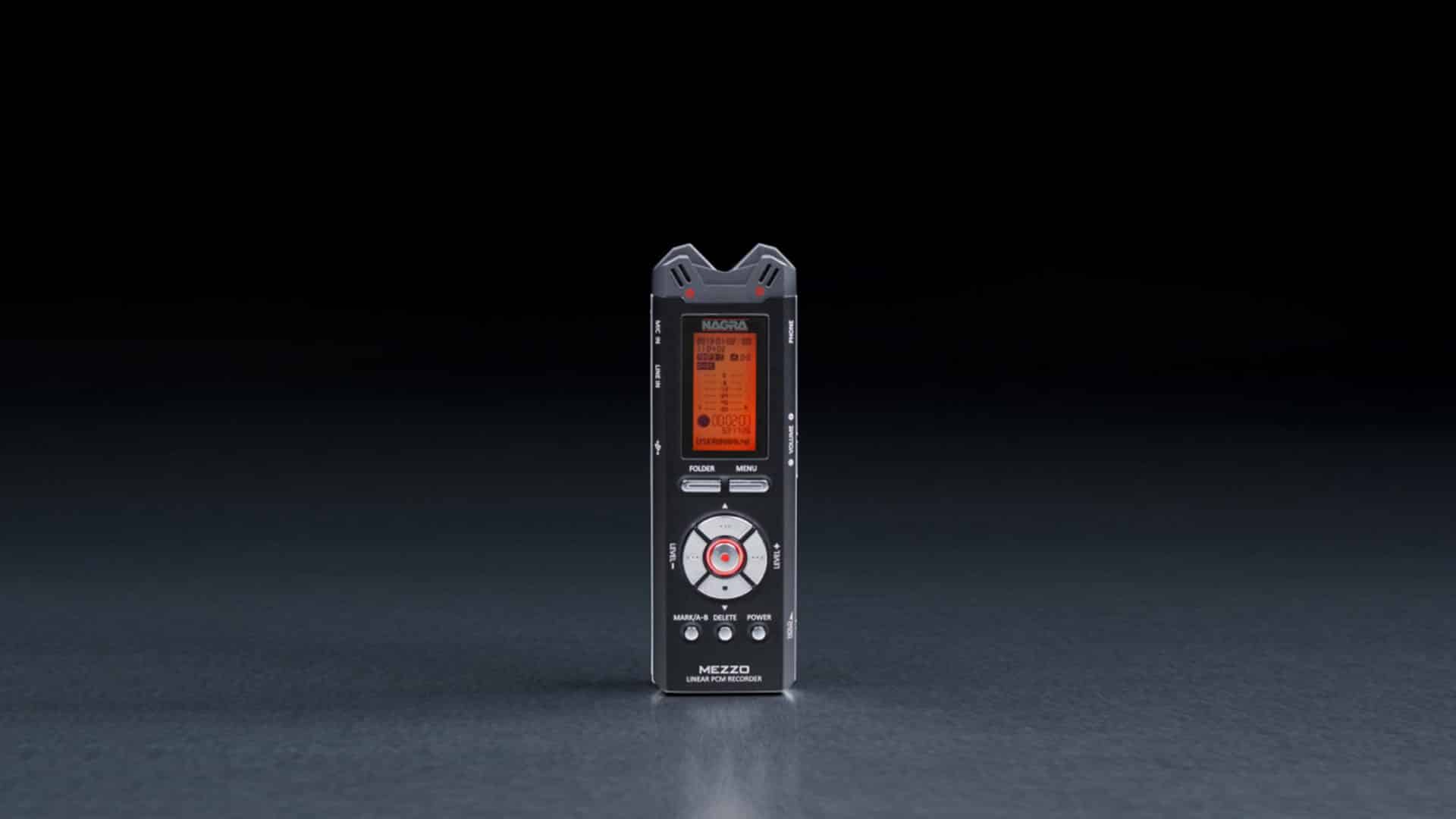

The Nagra MEZZO is a handheld stereo recorder with built-in microphone. It is ideal for interviews and its light weight and compact size as well as long battery-life will allow it to be your constant companion all around the globe.

Nagra Mezzo

General features

High quality solid-state audio recorder, for any ultra-portable recording situation. It records to an internal 8GB flash memory in PCM Mono or Stereo audio WAV files at up to 24 bits 96 kHz sampling rates, as well as MP-3 compression for longer recording times. Powered by two “AA” batteries it offers in excess of 40 hours operation. It has an automatic gain control system, a noise cut low frequency attenuation input filter and VOR (Volume Operated Recording), and is equipped with a specially designed extra high-quality playback amplifier and internal loudspeaker.

Very easy to operate and comfortable in-the-hand the MEZZO is an ideal pocket sized recording device. Designed for radio journalist applications, DSLR work and any ultra-portable situation. All machine settings are programmed through the comprehensive menu system, where many features of the recorder can be adapted according to the users requirements.

Audio inputs

Compatibility The Nagra MEZZO has a miniature USB 2.0 port. Through this connection, the internal memory appears on the “desktop” as a mass storage device (external drive) of the PC / MAC and requires NO additional software or drivers.

Nagra Mezzo

Features list

  • Solid-State recording
  • Menu driven
  • Internal 8GB memory
  • Long battery life
  • USB 2.0 port
  • Lightweight Ultra – portable
  • High sensitivity built-in microphones
  • Built-in loudspeaker, AGC and Low cut filter
  • Line input
  • FAT 32 format
  • External Microphone connection
  • 24 bit 96 kHz Linear PCM and MP3 formats

Get an insight into the Nagra Pro Audio

DISCOVER

Technical specification

GENERAL

Data Storage medium:Internal 8GB Flash memory
Recording Method:Digital (PCM) or Digital compression (MP3)
Compression type:ISO MPEG III
Sampling Rate:Up to 96 kHz PCM and MPEG
Playback formats:WAV, MP2, MP3, WMA
Frequency response:20 Hz – 20 kHz ±0.5dB
Dynamic range adjust:>40dB
MIC S/N ratio:90 dB (ASA “A” weighted
Dynamic range (recorded file):>94 dB (Line input 3.5V)
Microphone EIN:>122 dB (ASA “A” weighted)
THD+N at 1 kHz:>0.02% (20Hz – 22 kHz ASA “A” weighted)
Mono/Stereo:Switchable



INPUTS

Mic. filter:100Hz
Input sensitivity:620µV to 76 mV for 0 dB recording
Mic gain:0 – 40 dB
Mic. Inputs:Miniature  3.5mm stereo Jack connector
Internal Microphones:2 x Cardioid
Mic powering:3V electret (switchable ON / OFF)
A.G.C.:Switchable (On/Off)
Line Input:Miniature 3.5mm stereo Jack connector



OUTPUTS

Headphone:Miniature 3.5 mm stereo Jack connector
power:2x30mW (16Ω)
Built-in speaker:0.1W
USB:2



POWER SUPPLY

Battery pack:2 x “AA” cells
Consumption:170mW
Autonomy:>40 hours



PHYSICAL

Dimensions:138 x 41 x 19 mm (5.4 x 1.7 x 0.5″)
Weight:71 g without batteries
Operating temperature:0 – 70°C
Working humidity:20 – 80%



Manual
Software

V1.3.1.4

Mezzo V1.3.1.8 (Latest version)
