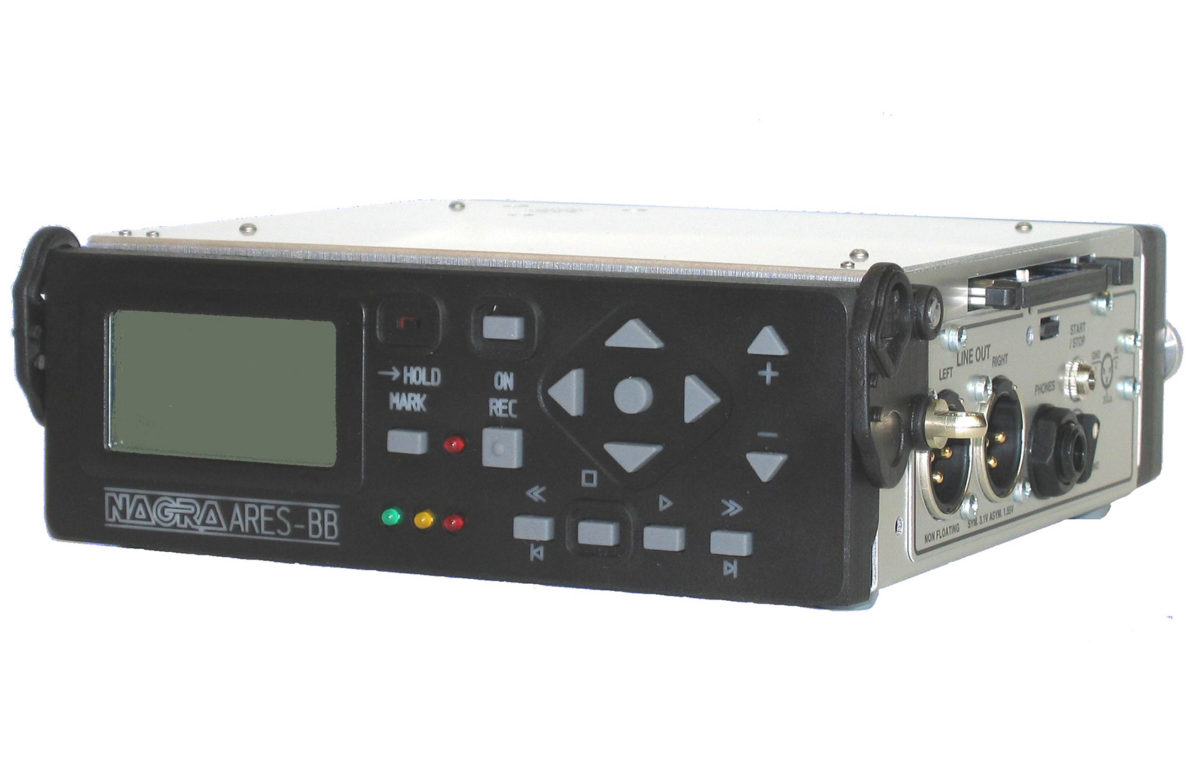

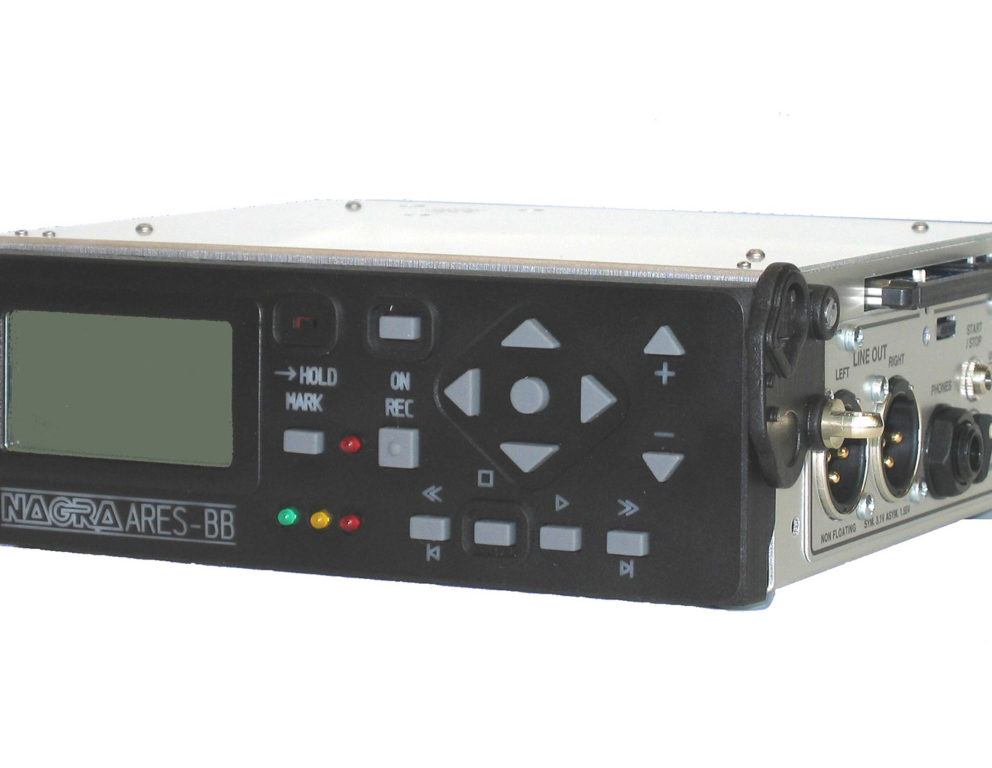

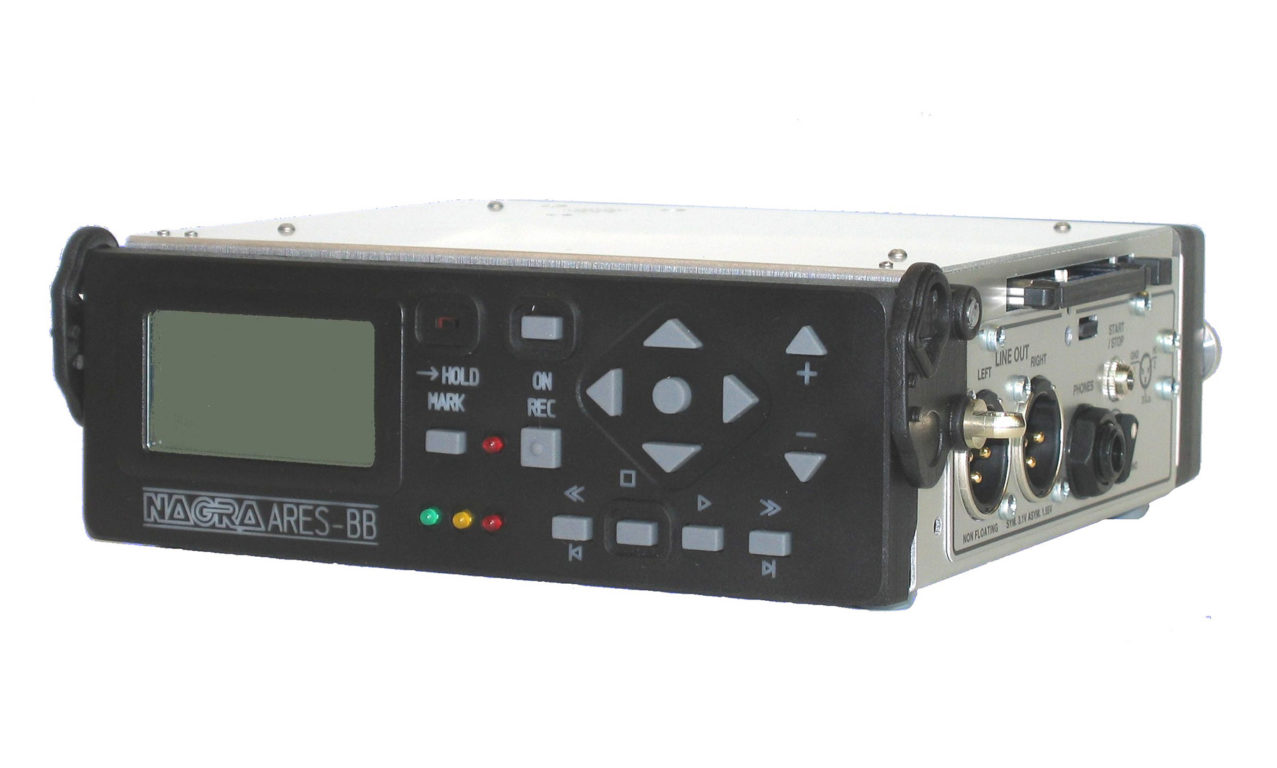

Nagra-ares BB

Manufactured from 2004 to 2005


Universal Digital Recorder

The ARES-BB was designed as a compact, high quality, solid-state easy-to-use portable digital audio recorder. Its recording media is PCMCIA of Compact Flash cards (Capacity unlimited), for the recording of PCM Mono or Stereo audio. Optional MPEG compression allows for longer recording times.



Key features

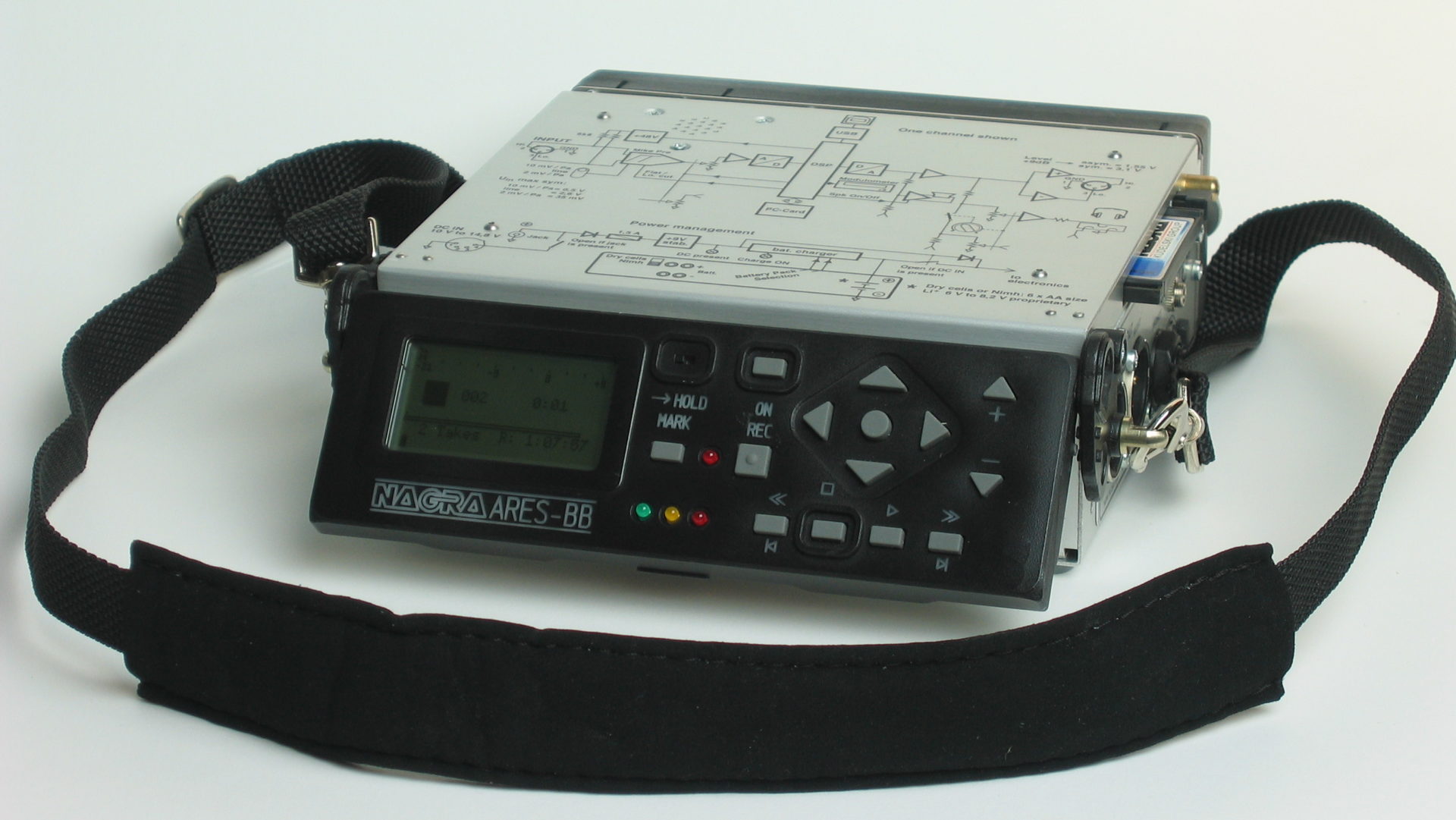

The unit can be powered by 6 “AA” (LR6) batteries, rechargeable “AA” cells or an optional lithium-ion battery pack, offering in excess of 15 hours operation. Especially suited to table-top applications thanks to it’s tilting keyboard. It can also be shoulder-hung in a carrying case for on-the-move recordings. The ARES-BB can operate with any standard dynamic microphone, and +48V powering is also provided allowing the use of any commercially available condenser microphones.

The ARES-BB offers instant start-up, one button recording, “takes” directory, large back-lit display, powerful vortex filter, automatic level control and internal loudspeaker. Optional internal software authorizations allow the machine to record MPEG compressed audio, to emulate a Digigram PCX sound card via USB and do internal audio editing in the field.

A large choice of accessories are available, such as power supply, carrying cases, cables etc to meet specific requirements.

Solid State recording: Menu driven
PCMCIA Compact Flash cards: Long battery life
USB port: Lightweight Ultra portable
Phantom powering: MS decoder
Optional internal audio editor: FAT 16/32 operation
Optional MPEG Compression: Reliable


The ARES-BB offers a USB port. Through this connection, the internal PCMCIA card appears on the “desktop” as n external drive of the PC / MAC. Naturally the card can be removed from the machine and directly inserted into the workstation if required. The FAT 16/32 file system has many advantages over the previous LFS system, meaning that individual takes can be removed at any time and MARKERS can be added to recordings during both record and playback.


The ARES-BB works with ATA PCMCIA cards, Strata Flash cards, compact flash cards and Microdrives (The last two require card adapters).

Special Features

Automatic Level control Remote Start / Stop feature Automatic voice activated recording Lockable menus Menu templates Built-in charger circuit Built-in loudspeaker Stereo monitoring on ¼” Jack Line output connector Internal audio editor (optional) MPEG compression (optional)

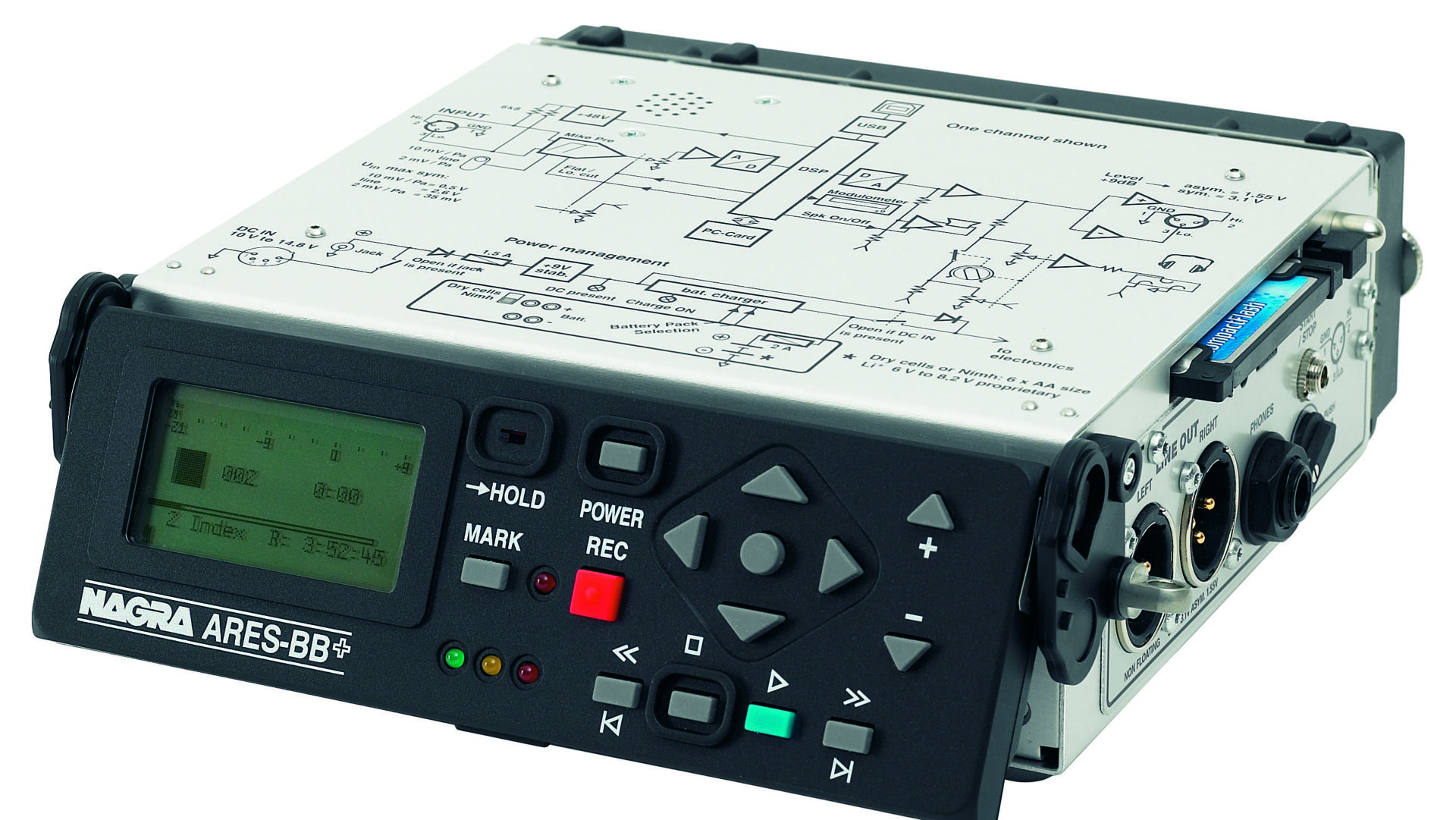

Nagra ares bb plus

Technical specifications


Data Storage medium: PCMCIA ATA cards, Compact flash cards, Micro drives
Recording Method: Digital (PCM) or Digital compression
Compression type: ISO MPEG Layer II
A/D & D/A conversion: 20 Bit Sigma-Delta
Sampling Rate: 16, 22.05, 24, 32, 44.1, 48 kHz
Bit-Rates: 64, 128, 192, 256, 384 kb/s
Mono/Stereo: Switchable and input routing
Recording Capacity: 21 minutes on a 256 MB card Stereo 48 kHz, PCM
Max. Recording Capacity: 132 minutes on a 256 MB card Stereo 48 kHz, 256 kb/s
PCMCIA Slot: Single type I & II
Dynamic Range Adjust: 50 dB for 0 dB record (manual), 40 dB for 0 dB record (ALC)
Filters: “Flat”, “LFA”
File Format: Broadcast Wave Format (.wav)



Mic. / Line Inputs: 2 XLR  connectors
Microphone Powering: 48 V Phantom
Sensitivity: From 2 mV to 10 mV for 0 dB recording
Line Input: Symmetrical transformerless
Line Input Sensitivity: 0.44 V to 1.4 V for 0 dB recording



Headphone: Jack 6.3 mm stereo connector
Line Output: 2 XLR connectors, symmetrical transformerless
THD at 1 kHz: 0.1 %
Frequency response: 30 Hz – 20 kHz (-3 dB in EE mode)
Total dynamic range: 80 dB



Battery pack: 6 x “AA” cells
Consumption: 240 mA during record (no display light)



Dimensions: 160 x 168 x 56 mm (6¼ x 6¾ x 2 inch)
Weight: 900 g, (2 lb)



2019615150: ARES-BB printed user manual English edition
2019615151: ARES-BB printed user manual French edition



7019672000 NP-MPEG Software option for MPEG compression algorithms
7019673000 NP-RCX Software option for DIGIGRAM RCX Emulation (Requires NS-MPEG option also)
7019674000 NP-EDIT Software option for internal audio editor



7019640000 NB-BB Battery box for ARES-BB houses 6 “AA” cells (not included)
7019642000 NB-LIB Lithium Ion battery box for ARES-BB including Lithium pack and charger circuit (without power supply)
2019627000 NB-PSU AC Power supply, 100-240V~,47-63Hz, 12Vdc/800mA, World for ARES-BB
2019624000 Universal Mains socket adapter



2099186000 NB-SCC Soft carrying case for ARES-BB
2099187000 NB-SCC2 Soft carrying case WITH pocket for ARES-BB



7019670000 NP-PCA RS232 Adapter for serial PC connection (software download)
2019669000 CP-USB USB cable (replacement)



2097170000 C-ADAPT Compact flash card adapter ATA
2097176000 C-ATA-512 Compact Flash ATA card 512 MB
2097178000 C-ATA-1G Compact Flash ATA card 1 GB
2097180000 C-ATA-2G Compact Flash ATA card 2 GB
2097179000 C-ATA-4G Compact Flash ATA card 4 GB
