ARES-BB +

Nagra ares bb plus

Universal Digital Recorder

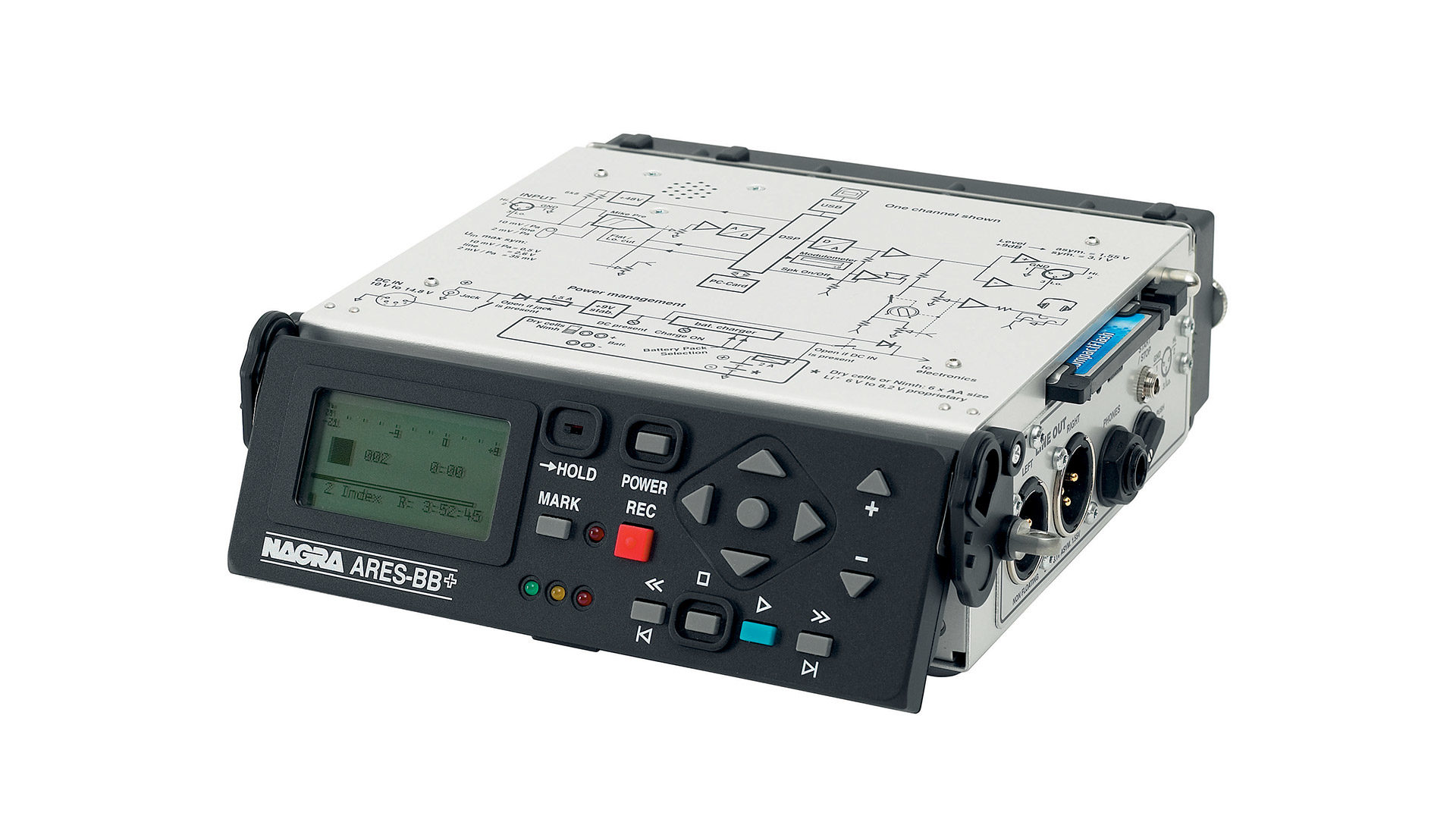

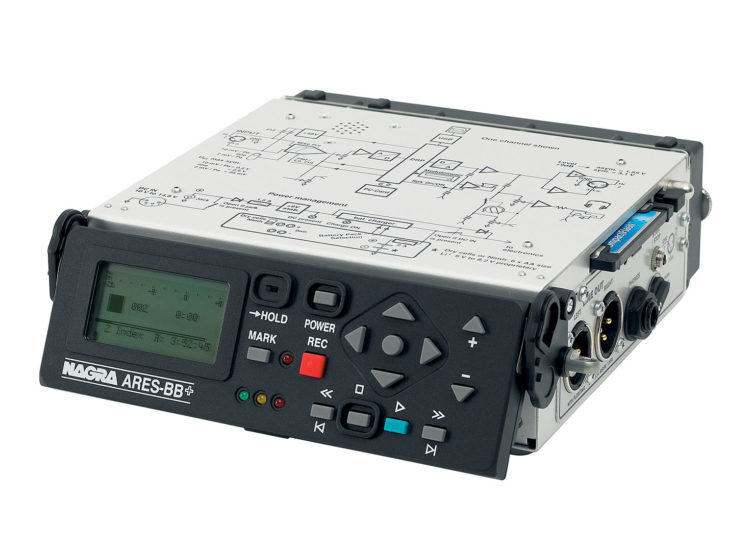

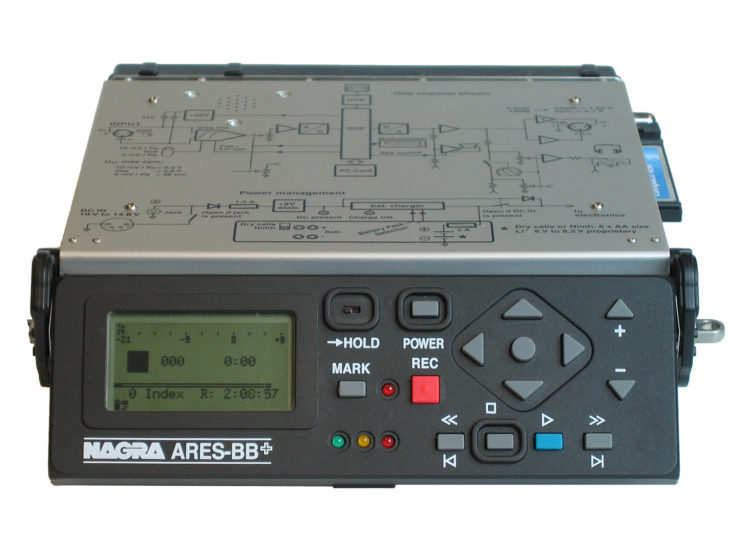

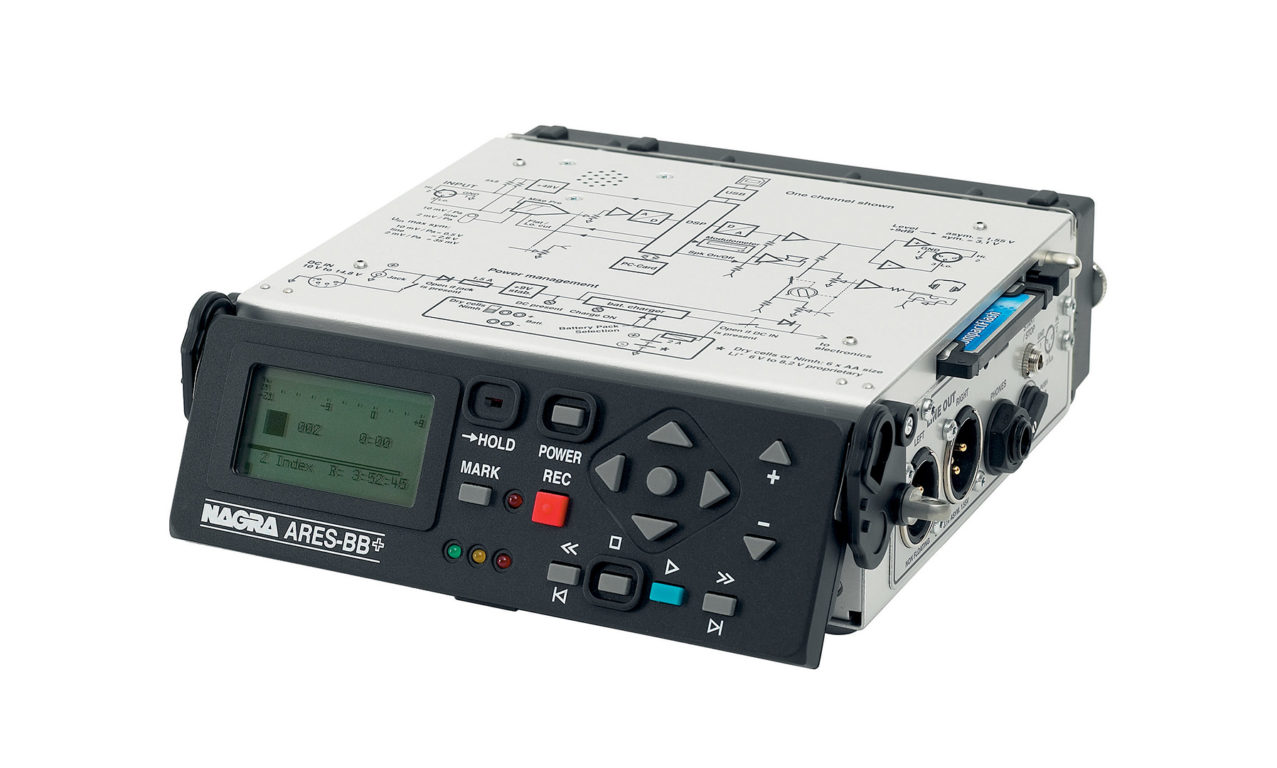

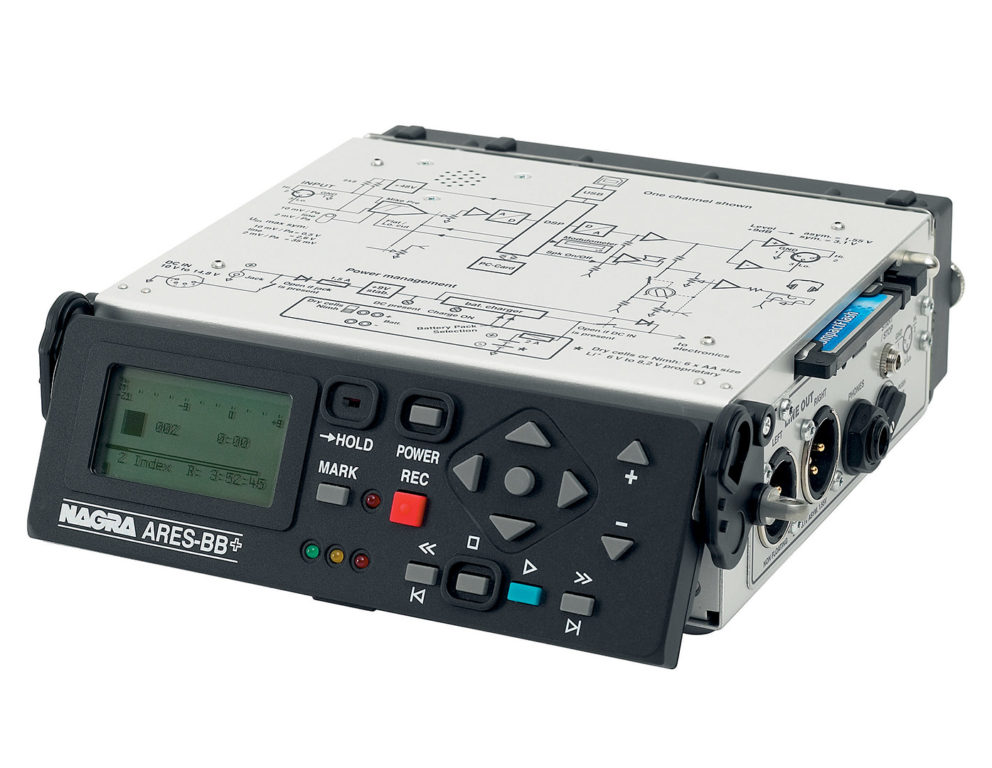

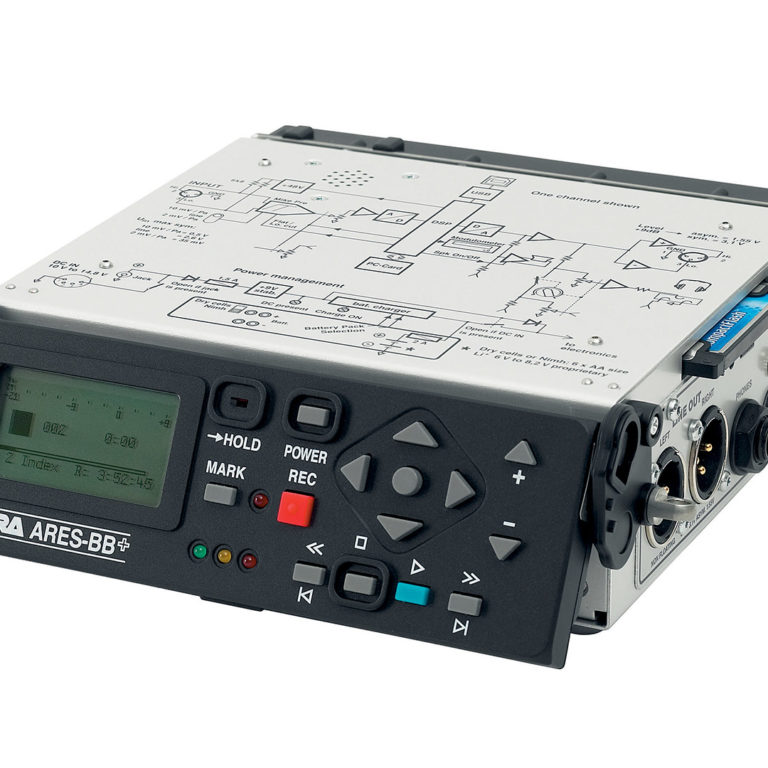

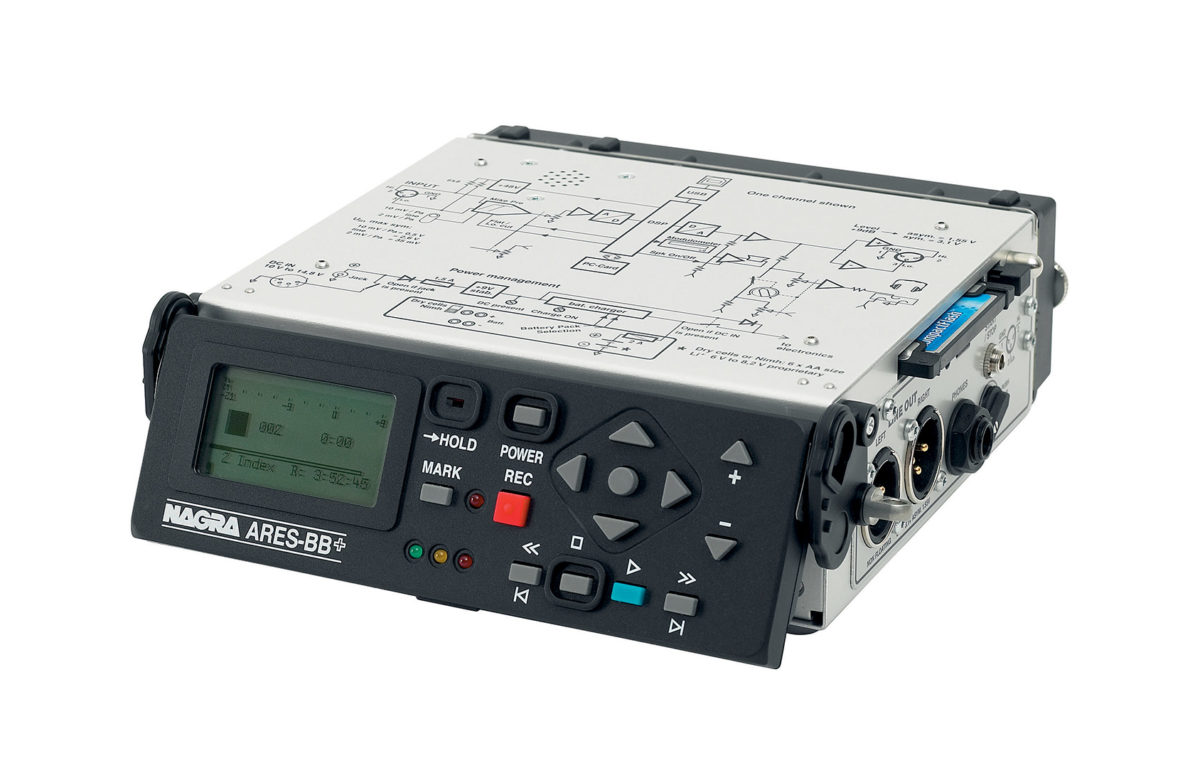

The ARES-BB+ was designed as a compact, high quality, solid-state easy-to-use portable digital audio recorder. Its recording media is PCMCIA of Compact Flash cards (Capacity unlimited), for the recording of PCM Mono or Stereo audio. Optional MPEG compression allows for longer recording times.

Key features

The unit can be powered by 6 “AA” (LR6) batteries, rechargeable “AA” cells or an optional lithium-ion battery pack, offering in excess of 15 hours operation. Especially suited to table-top applications thanks to it’s tilting keyboard. It can also be shoulder-hung in a carrying case for on-the-move recordings. The ARES-BB+ can operate with any standard dynamic microphone, and +48V powering is also provided allowing the use of any commercially available condenser microphones.

The ARES-BB+ offers instant start-up, one button recording, “takes” directory, large back-lit display, powerful vortex filter, automatic level control and internal loudspeaker. Optional internal software authorizations allow the machine to record MPEG compressed audio, to emulate a Digigram PCX sound card via USB and do internal audio editing in the field.

A large choice of accessories are available, such as power supply, carrying cases, cables etc to meet specific requirements.

Solid State recording:Menu driven
PCMCIA Compact Flash cards:Long battery life
USB port:Lightweight Ultra portable
Phantom powering:MS decoder
Optional internal audio editor:FAT 16/32 operation
Optional MPEG Compression:Reliable

Compatibility

The ARES-BB+ offers a USB port. Through this connection, the internal PCMCIA card appears on the “desktop” as n external drive of the PC / MAC. Naturally the card can be removed from the machine and directly inserted into the workstation if required. The FAT 16/32 file system has many advantages over the previous LFS system, meaning that individual takes can be removed at any time and MARKERS can be added to recordings during both record and playback.

Nagra ares bb plus

PCMCIA Cards

The ARES-BB+ works with ATA PCMCIA cards, Strata Flash cards, compact flash cards and Microdrives (The last two require card adapters).

Nagra ares bb plus

Special Features

Automatic Level control Remote Start / Stop feature Automatic voice activated recording Lockable menus Menu templates Built-in charger circuit Built-in loudspeaker Stereo monitoring on ¼” Jack Line output connector Internal audio editor (optional) MPEG compression (optional)

Technical specifications

GENERAL

Data Storage medium:PCMCIA ATA cards, Compact flash cards, Micro drives
Recording Method:Digital (PCM) or Digital compression
Compression type:ISO MPEG Layer II
A/D & D/A conversion:20 Bit Sigma-Delta
Sampling Rate:16, 22.05, 24, 32, 44.1, 48 kHz
Bit-Rates:64, 128, 192, 256, 384 kb/s
Mono/Stereo:Switchable and input routing
Recording Capacity:21 minutes on a 256 MB card Stereo 48 kHz, PCM
Max. Recording Capacity:132 minutes on a 256 MB card Stereo 48 kHz, 256 kb/s
PCMCIA Slot:Single type I & II
Dynamic Range Adjust:50 dB for 0 dB record (manual), 40 dB for 0 dB record (ALC)
Filters:“Flat”, “LFA”
File Format:Broadcast Wave Format (.wav)



INTPUTS

Mic. / Line Inputs:2 XLR  connectors
Microphone Powering:48 V Phantom
Sensitivity:From 2 mV to 10 mV for 0 dB recording
Line Input:Symmetrical transformerless
Line Input Sensitivity:0.44 V to 1.4 V for 0 dB recording



OUTPUTS

Headphone:Jack 6.3 mm stereo connector
Line Output:2 XLR connectors, symmetrical transformerless
THD at 1 kHz:0.1 %
Frequency response:30 Hz – 20 kHz (-3 dB in EE mode)
Total dynamic range:80 dB



POWER SUPPLY

Battery pack:6 x “AA” cells
Consumption:240 mA during record (no display light)



PHYSICAL

Dimensions:160 x 168 x 56 mm (6¼ x 6¾ x 2 inch)
Weight:900 g, (2 lb)



OPTIONS / ACCESSORIES

2019615150:ARES-BB+ printed user manual English edition
2019615151:ARES-BB+ printed user manual French edition



SOFTWARE OPTIONS

7019672000NP-MPEGSoftware option for MPEG compression algorithms
7019673000NP-RCXSoftware option for DIGIGRAM RCX Emulation (Requires NS-MPEG option also)
7019674000NP-EDITSoftware option for internal audio editor



POWERING OPTIONS

7019640000NB-BBBattery box for ARES-BB houses 6 “AA” cells (not included)
7019642000NB-LIBLithium Ion battery box for ARES-BB+ including Lithium pack and charger circuit (without power supply)
2019627000NB-PSUAC Power supply, 100-240V~,47-63Hz, 12Vdc/800mA, World for ARES-BB+
2019624000Universal Mains socket adapter



CASES / STRAP

2099186000NB-SCCSoft carrying case for ARES-BB+
2099187000NB-SCC2Soft carrying case WITH pocket for ARES-BB+



ADAPTERS / CABLES

7019670000NP-PCARS232 Adapter for serial PC connection (software download)
2019669000CP-USBUSB cable (replacement)



COMPACTS FLASH CARDS

2097170000C-ADAPTCompact flash card adapter ATA
2097176000C-ATA-512Compact Flash ATA card 512 MB
2097178000C-ATA-1GCompact Flash ATA card 1 GB
2097180000C-ATA-2GCompact Flash ATA card 2 GB
2097179000C-ATA-4GCompact Flash ATA card 4 GB
